ZC Commercial 3 Kg Shop Coffee Roaster Machine Z-Roaster A300 Pro

$5,800.00

Color

Clear

Details

Product Data

Reviews

FAQs

SPARE PARTS

Basic Info.Model
A300 Pro
Roaster Type
Semi-hot-air
Colors
White / Black / Bronze Gold / Aqua Blue
Roasting Time
Normal 8-15 minutes
Batch Capacity
0.5KG-3KG/Cycle
Hourly Output
1KG-15KG/Hr
Drum Material
Stainless Steel
Heating Source
Electric/ Nature Gas / LPG
Gas Pressure
0-5Kpa / 0-10Kpa
Exhaust Fan Speed
Adjustable Ratio (30-50Hz)
3-temperature Display
BT + Air Inlet Temp.+ Exhaust Temp.
Temperature Meter
South Korea Autonics
Burning System
Italy Polidoro Burners
Cooling Mixing Agitators
Includes
Silverskin Collection
Bucket Cyclone Collector
Firepower Indicator
Gas Pressure gauge display
Temperture Alarm
Available
Flameout Alarm
Available
Burning Indication
Available
Voltage
1P 220V 50/60Hz
Air Pressure Gauge
Optional
Connect to Artisan
Available
Ignition System
Electronic ignition
Roaster Dimension
1450×680×980 (mm)
N.W. / G.W.
195KGS / 230KGS
Package Size
1600×800×1200 (mm)

Structure Diagram of A300 Pro
        Exhaust Duct Outlet
Exhaust Fan
Exhaust Fan Quick Clamp
Collector Quick Clamp
Air Pressure Gauge
Collector Fixed Support
Silverskin Storage Bin
Gas Pressure Indicator
Gas Connection Inlet
Gas Control Valve
Timer
Inlet Air Temperature Meter
Bean Temperature Meter
Residue Collection Drawer
Variable Drum Speed controller
Variable Fan Speed controller
Main Power ON/OFF
Timer ON/OFF
Ignition ON/OFF
Cooling Agitator ON/OFF
Cooling Fan ON/OFF
Cooler Maintenance Access
Roasted Bean Cooling Tray
Cooling Bin Box
Cooling Tray Discharge Outlet
Green Bean Hopper
Green Bean Drop Switch
Exhaust Air Temperature Meter
Roaster Drum Spacing Adjutor
LED Light
Sampling Spoon
Discharge Balancer Handle

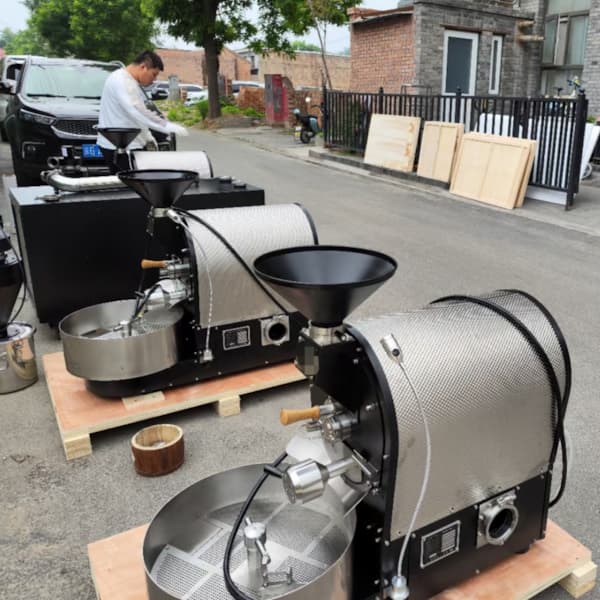

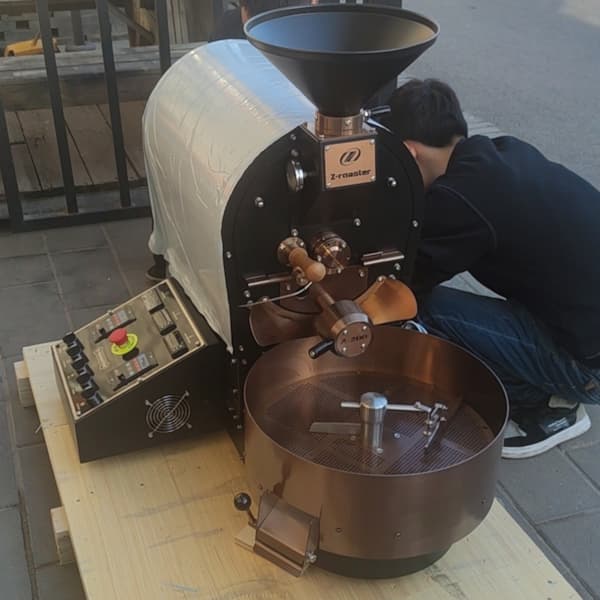

Packing & Shipping Details

Wood Crate

Solid

Inner Package

Safe

Protection

Compact

Shipping

Responsilble

ZC Commercial 3 Kg Shop Coffee Roaster Machine Z-Roaster A300 Pro

Additional information

Weight	230 kg
Dimensions	160 × 80 × 120 cm
Brand	Z-ROASTER
Voltage	Single Phase 220V 50/60Hz
Heat Source	LPG, Natural Gas
Color	Bronze, Hammered Metal Silver, Metal Silver, White, Light Blue
